KS Series
Powered Subwoofers
Three models. Three incredible approaches to low frequency sound reinforcement.

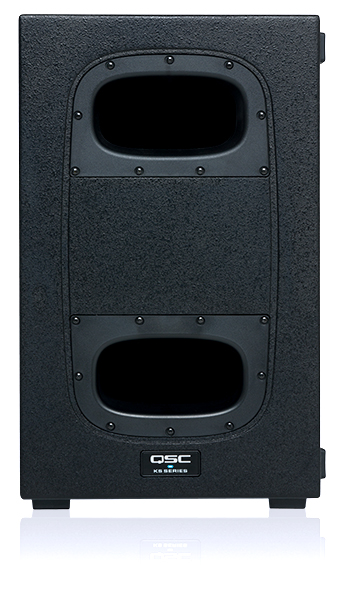

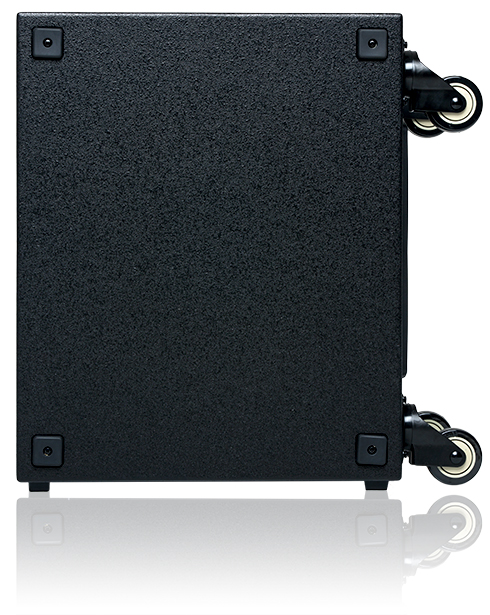

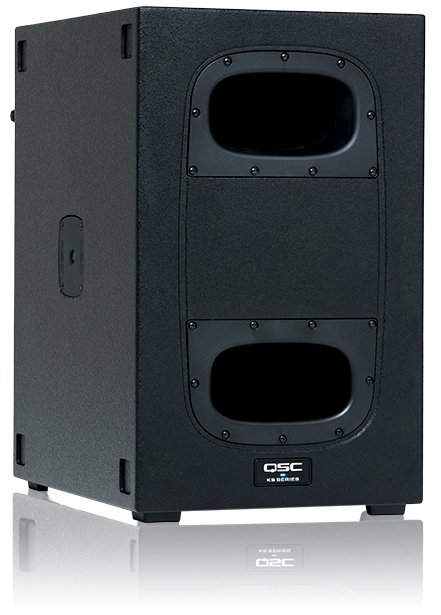

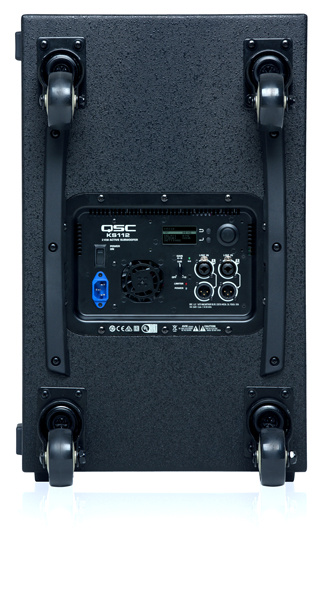

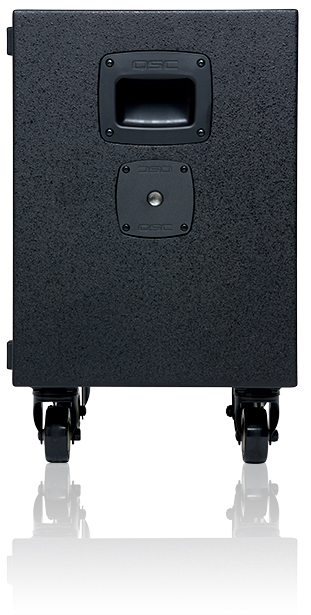

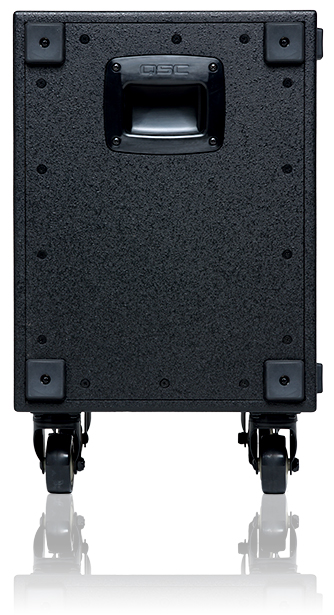

KS112
Ultra-Compact
- High output in an ultra-compact form factor
- 2000 Watt Class D amplifier
- 12-inch, long-excursion driver; 6th order band-pass design
- Refined, professional appearance looks great in any application

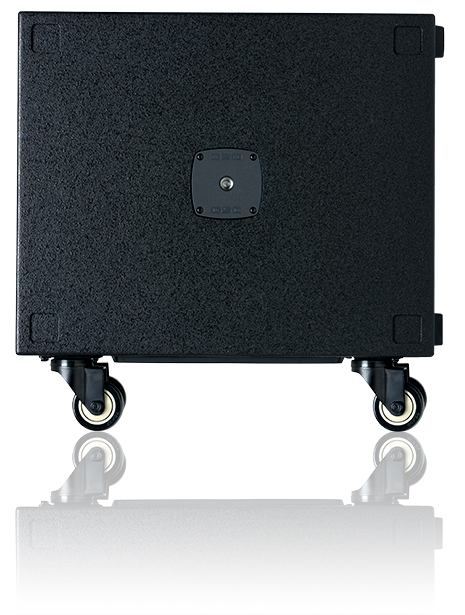

- Vertical or horizontal deployment with dual M20 loudspeaker pole fittings
KS112 Omni-directional radiation

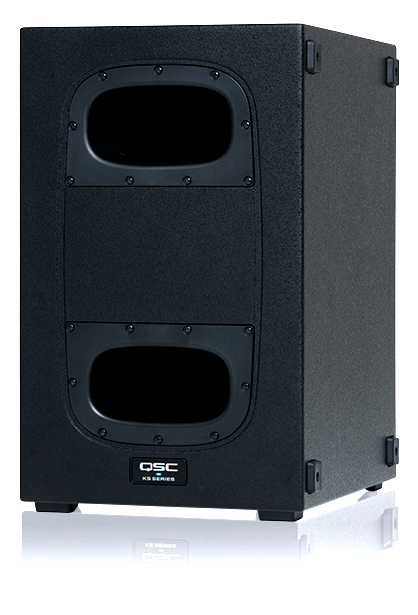

KS212C
Directional
- World’s first-in-class single-box active cardioid subwoofer
- 3600 Watt Class D amplifier
- Dual 12-inch, long-excursion drivers;
Dual 6th order band-pass design - 15 dB SPL front-to-rear attenuation
- Vertical or horizontal deployment with dual M20 loudspeaker pole fittings
KS212C Cardioid radiation

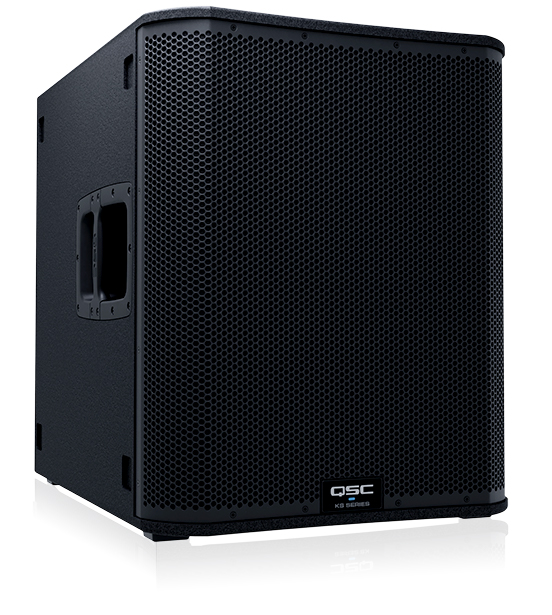

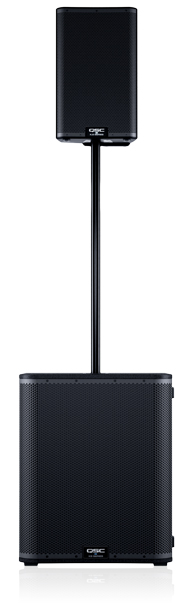

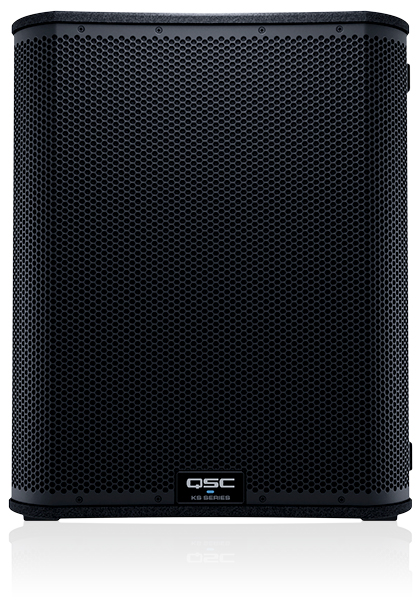

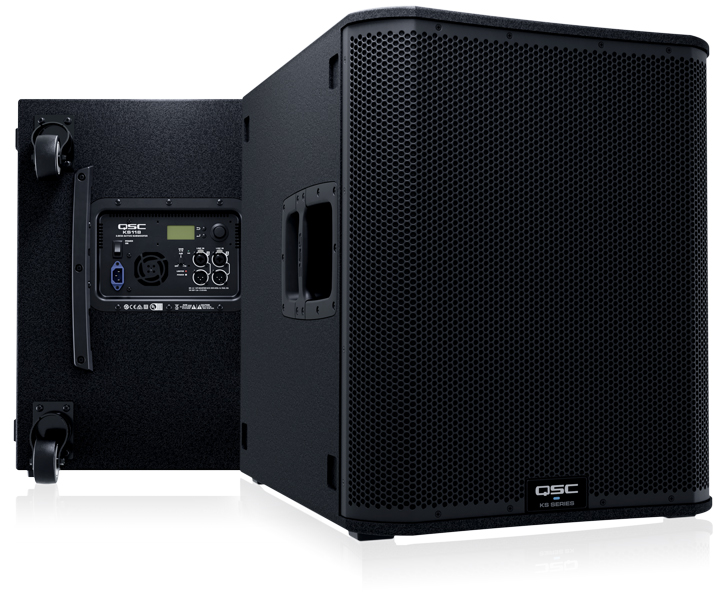

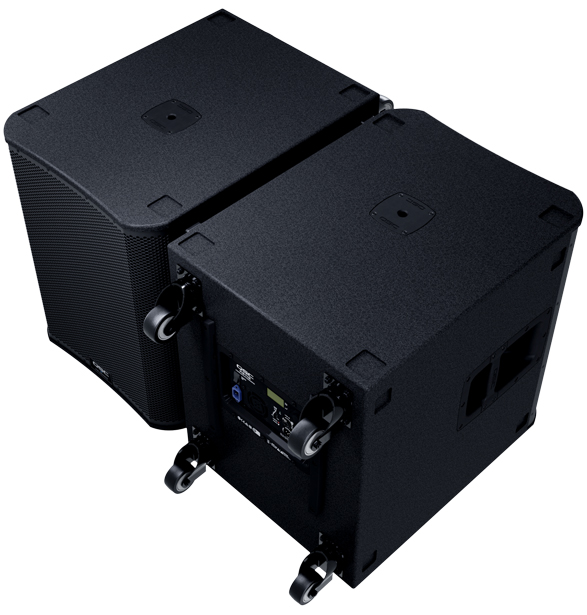

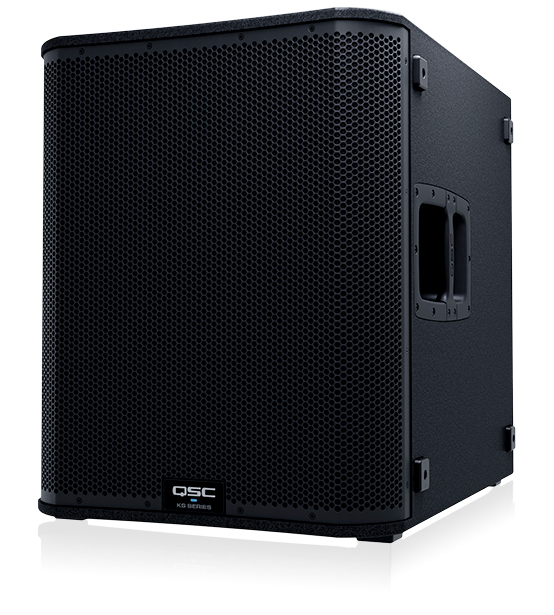

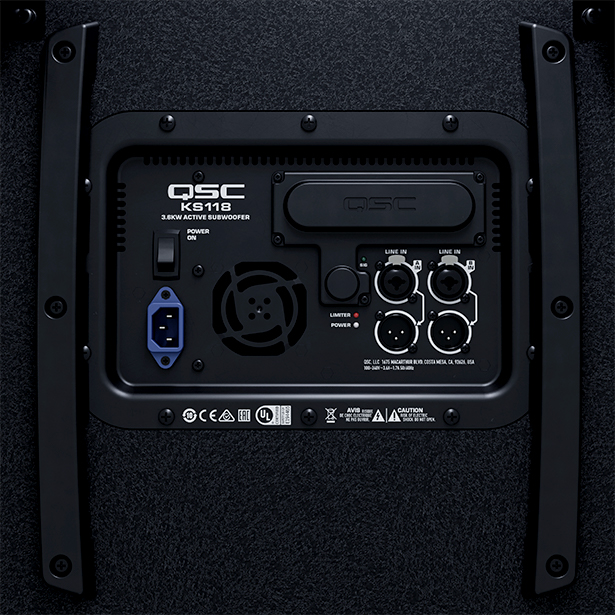

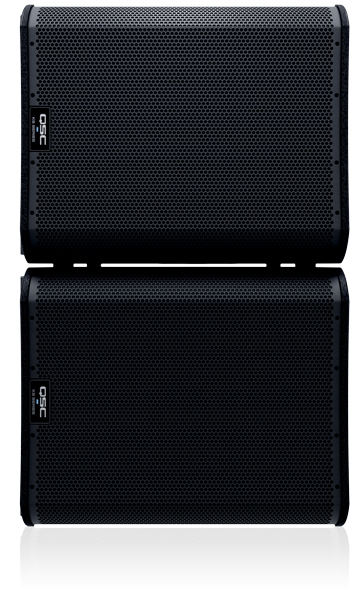

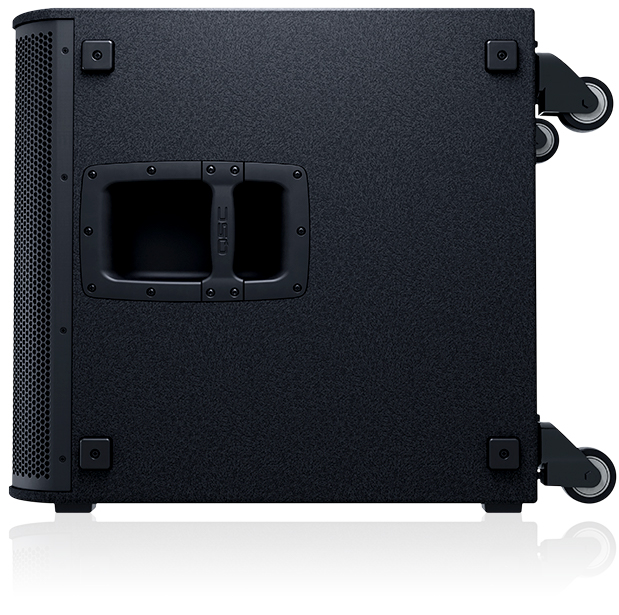

KS118
Commanding and Powerful
- Impressive low frequency performance
- 3600 Watt Class D amplifier
- 18-inch, long-excursion direct radiating driver
- Omni-directional or cardioid radiation modes
- Selectable DEEP™ mode for extremely low

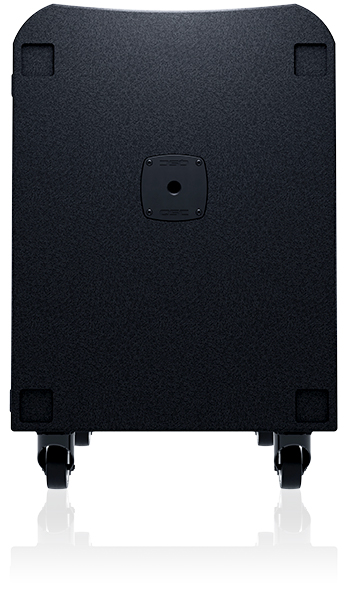

frequency extension - Vertical or horizontal deployment (M20
threaded pole receiver for vertical setup)
KS118 Omni-directional, or cardioid (min. 2 units), radiation
SELECT A MODEL
Model | KS112 | KS212C | KS118 |
Configuration | 6th-order bandpass | Dual 6th-order bandpass cardioid | Direct radiating |
LF Transducer | 305 mm (12 in), cone | 2 × 305 mm (12 in), cone | 460 mm (18 in), cone |
Frequency Response (-6 dB) | 41 Hz - 108 Hz | 44 Hz - 104 Hz | 41 Hz - 98 Hz |
Frequency Range (-10 dB) | 38 Hz - 121 Hz | 39 Hz - 118 Hz | 35 Hz - 111 Hz |
Speaker Dimensions (H×W×D) | 622 × 394 × 616 mm 24.5 × 15.5 × 24.25 in | 622 × 394 × 851 mm 24.5 × 15.5 x 33.5 in | 640 × 520 × 785 mm 25.2 × 20.5 × 30.9 in |
Carton Dimensions (H×W×D) | 740 × 500 × 673 mm 29 × 19.7 × 26.5 in | 970 × 500 × 670 mm 38.2 × 19.7 × 26.4 in | 572 × 743 × 896 mm 22.5 × 29.3 × 35.3 in |
All specifications are subject to change without notice.
