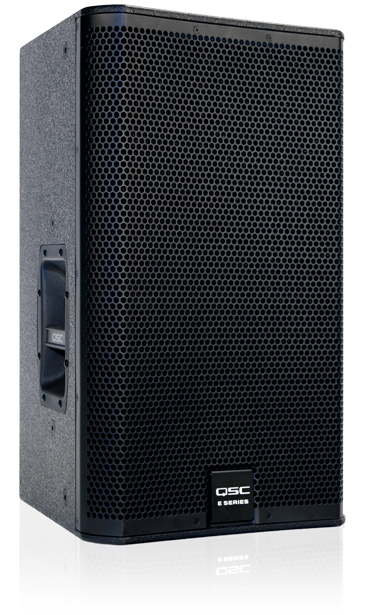

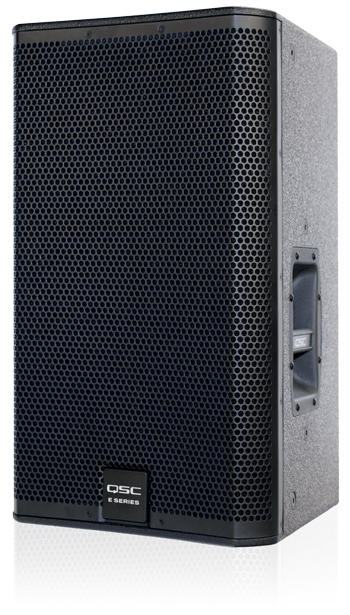

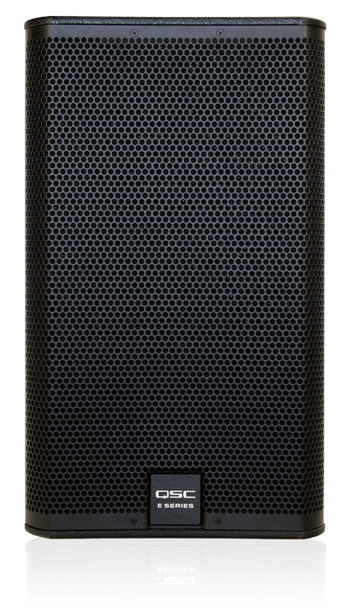

• E112 front image

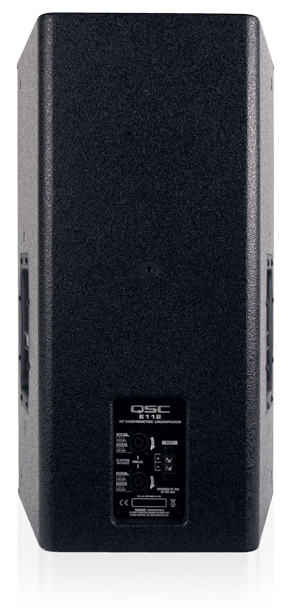

  • E112 back image

The E112 is a trapezoidal, two-way loudspeaker using a 12-inch die cast aluminum woofer with a 3-inch voice-coil. The 15mm, 11-ply enclosure provides enough volume to deliver solid low-frequency extension down to 65 Hz making it an excellent choice for applications in which space or budget preclude the use of a subwoofer. The DMT coverage angle of 85° is ideal for most medium and medium-long throw applications.

E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.

Features

  • High output, professional quality sound with 400 W continuous power
  • E Series Entertainment System – Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.
  • E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers:

             - For PLD/CXD visit Amplifier Navigator Software
             - For GXD visit the GXD Firmware Updater

  • Rugged tour-grade textured paint
  • Foam-lined perforated steel grill
  • Available U-Style Yoke and M10 rigging kit for permanent installation
  • Dual angle pole socket

Specifications

Model E112
Configuration 1 × 12-inch, 2-way, non-powered
Frequency Response (-6 dB) 64 Hz – 20 kHz
Frequency Range (-10 dB) 46 Hz – 20 kHz
Power capacity1: continuous/peak 400 W / 1600 W
Sensitivity 96 dB, 1 W @ 1 m
Coverage Angle 85° conical DMT™
Output2 (peak SPL @ 1m) 128 dB

Drivers

LF

HF



305 mm (12 in) driver with 76 mm (3 in) voice coil

25 mm (1 in) exit, 45 mm (1.75 in) voice coil, compression driver

Nominal Impedance
Cross-over Full range only, 1.8 kHz

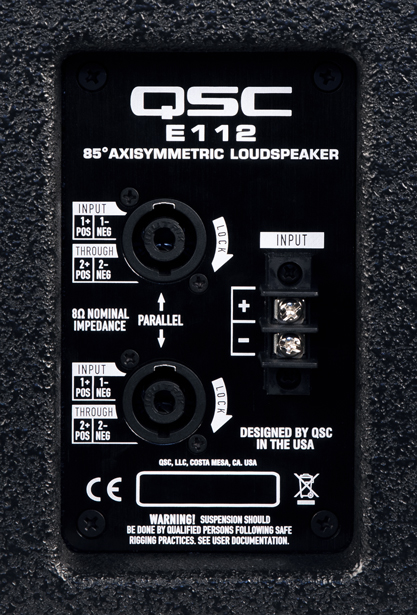

Input Connections 2 × NL4, 1 × barrier strip
Enclosure Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining.
Speaker Dimensions
(W×H×D)
360 × 616 × 371 mm
14.2 × 24.2 × 14.6 in
Carton Dimensions
(W×H×D)

460 × 460 × 712 mm
18 × 18 × 28 in

Net Speaker Weight 23 kg / 51 lb
Shipping Weight 25.4 kg / 56 lb


1 Power that the device can withstand for two hours without permanent change in acoustical, mechanical, or electrical characteristics, greater than 10%, using IEC60268 noise based on nominal impedance in the cabinet with crossover, full range 30 Hz 12 dB/octave.
2 With QSC Processing

*Specifications subject to change without notice.
