High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.
Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selected contours for commonly-used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition® (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application

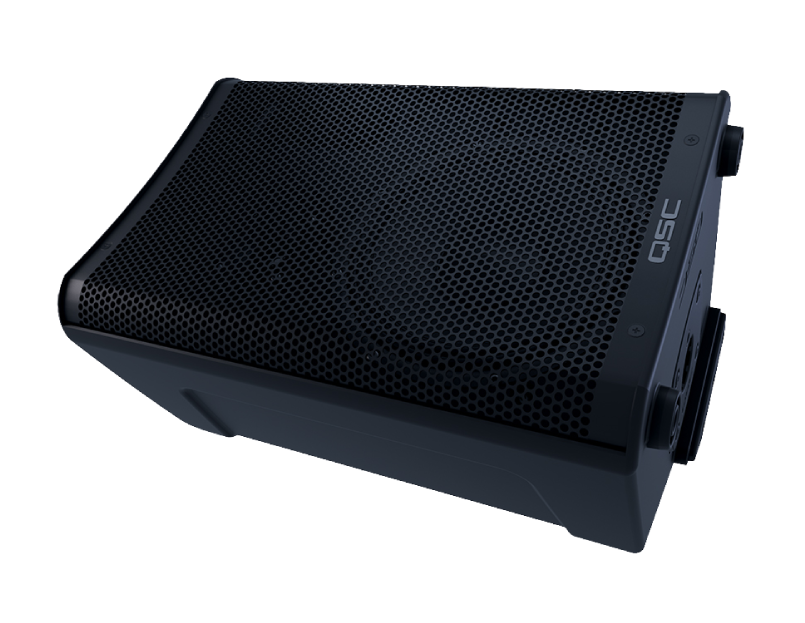

- Use for main PA, stage monitor, or instrument amplifier

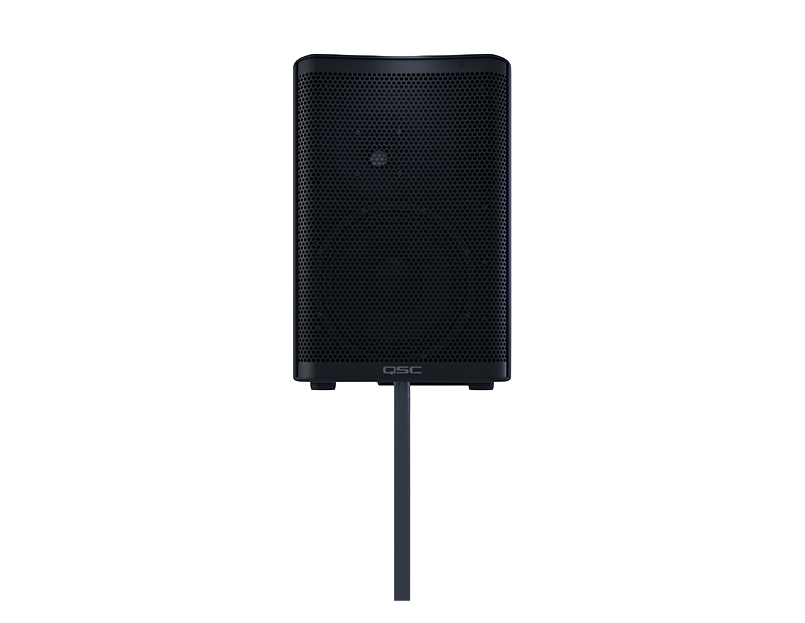

- 35 mm pole socket

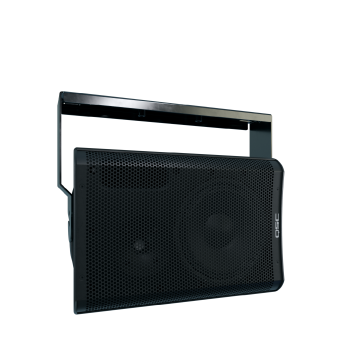

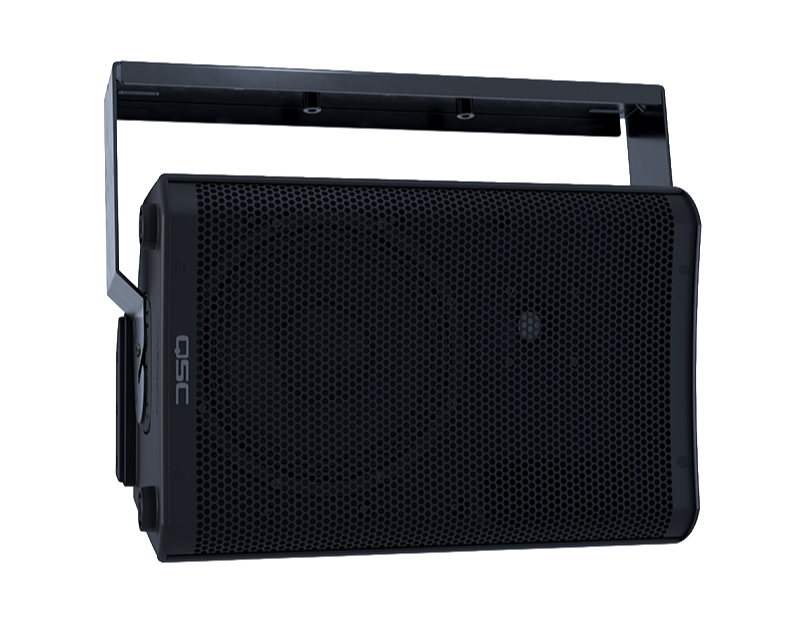

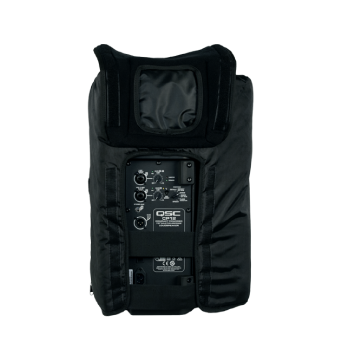

- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 6-Year Warranty*
* 1 year warranty may be extended by an additional 5 years, with QSC Product Registration
Specifications

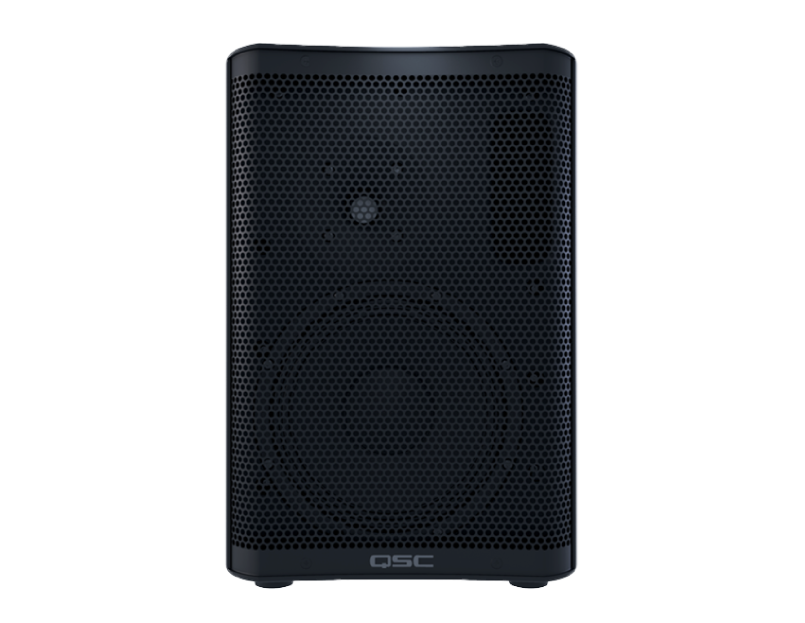

| Model | CP8 |
|---|---|
| Configuration | Two-way active loudspeaker |
| LF Transducer: | 203 mm (8 in) , cone |
| HF Transducer: | 35.6 mm (1.4 in) compression driver |
| Frequency Response (-6 dB) | 56 - 20 kHz |
| Frequency Range (-10 dB) | 53 - 20 kHz |
| Nominal Coverage Angle: | 90° Axisymetric |
| Maximum Rated SPL1: | 124 dB |
| Amplifier: | Class D Peak: 800 W (LF), 200 W (HF) |
| Controls: | Power 2 x Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators: | Power LED 2 × Input Signal LED Input B MIC selected LED Limiter active LED |

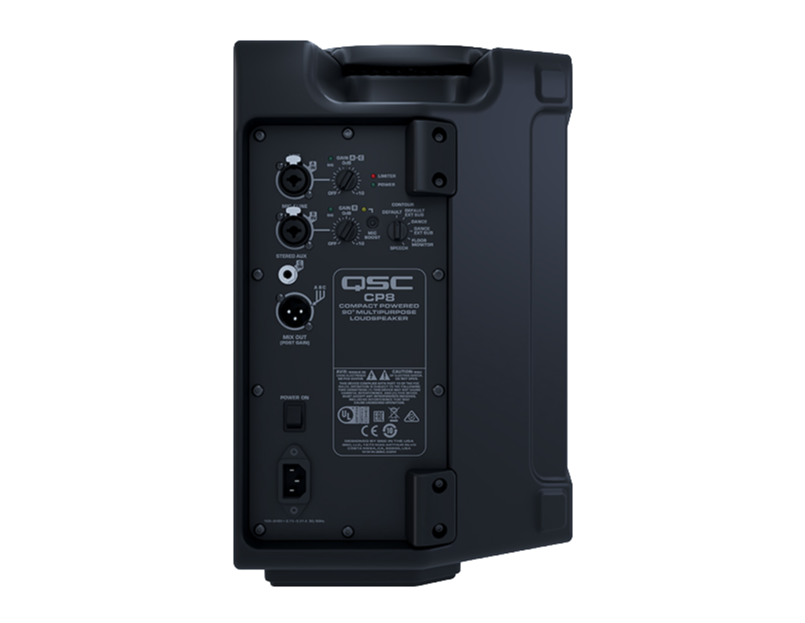

| Connectors: | 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input) 1 × 3.5 mm TRS (Stereo Input) 1 × XLR/M (Mix Output) 1 × IEC power connector |
| AC Power Input: | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption (1/8th Power): | 100 VAC, 0.75A - 240VAC 0.31A |
| Enclosure Material: | Polypropylene |
| Attachment Points: | M8 threaded insert |
| Color: | Black (RAL 9011) |
| Grille: | 18 Gauge powder-coated steel |

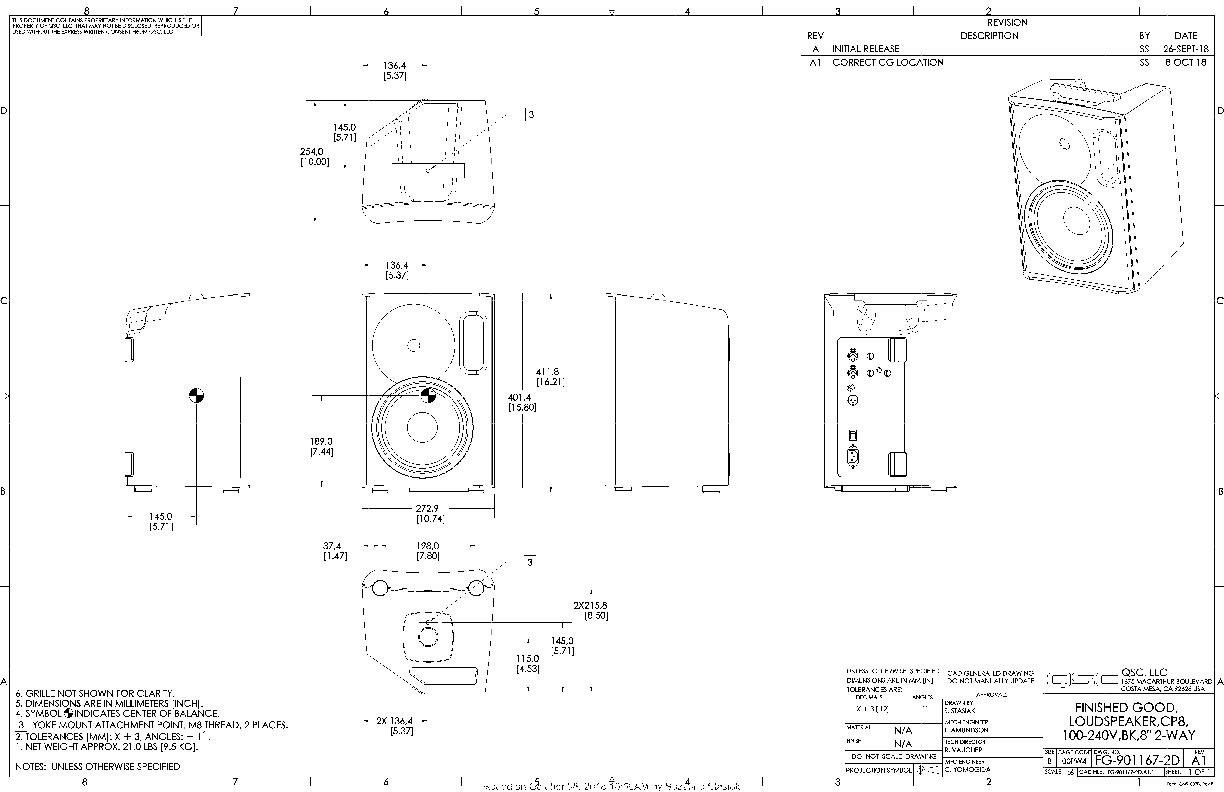

| Speaker Dimensions (H×W×D): | 411 × 273 × 256 mm 16.2 × 10.7 × 10.1 in |
| Carton Dimensions (H×W×D): | 360 × 360 × 496 mm 14.2 × 14.2 × 19.5 in |
| Net Weight: | 9.5 kg / 21.0 lb |
| Shipping Weight: | 11.5 kg / 25.4 lb |
| Regulatory: | EMC, UL, CB |
| Optional Accessories: | CP8 Tote, CP8 Outdoor Cover, CP8 Yoke |
1 Peak SPL is measured on-axis at 1 m, with dynamic pink noise
*Specifications are subject to change without notice.
