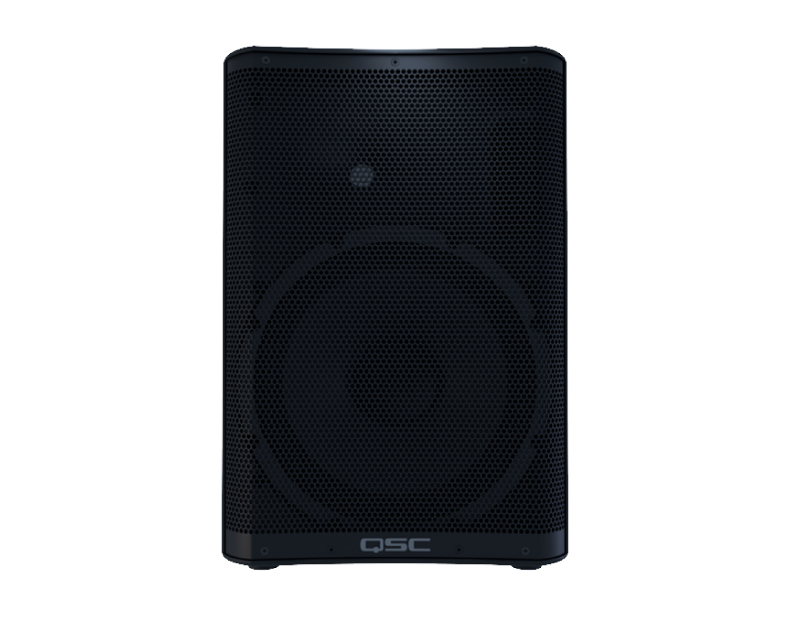

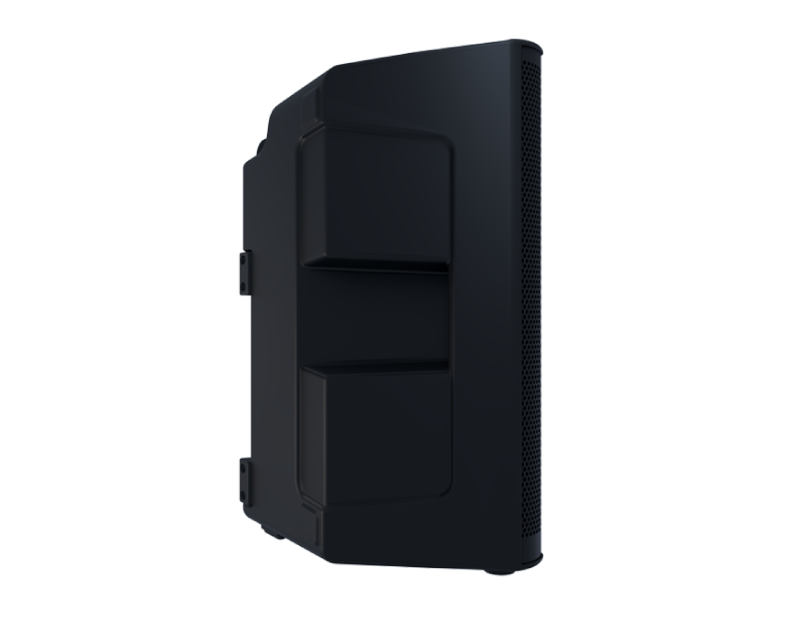

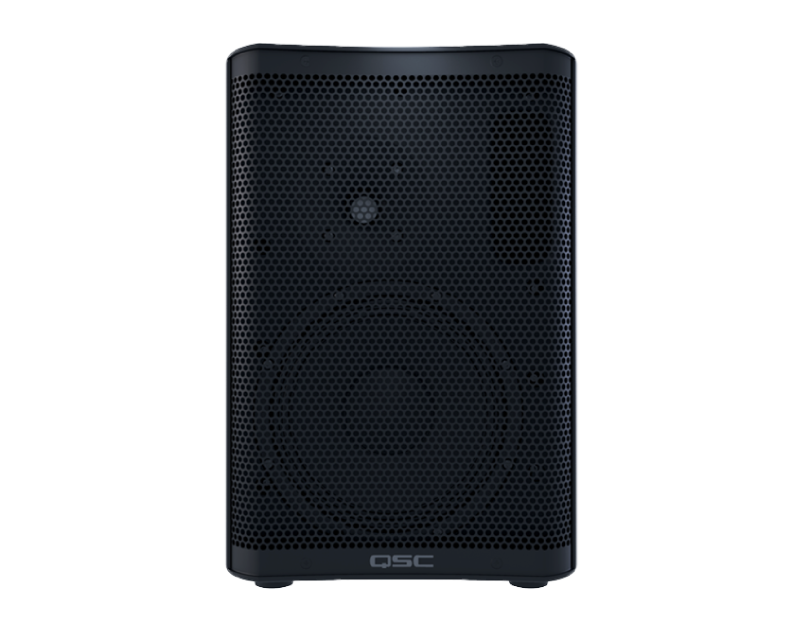

CP12

12-inch Compact Powered Loudspeaker

36 Reviews |  Write your review
Contact Us
We're sorry, but this item is unavailable.
Free -Day Shipping
Only Left!
Preorder Today
Coming Soon
Get it  if you order in   Price:
×
Get It Sooner
Get it by when you order within
Call to order!
Find Authorized Dealer
Buy Online
Rent / Buy Local
1 of 4

Image Gallery

1 of 4

Lightweight& Portable

Quick Access to Preset Contours

1000 W Peak Power Class-D Amplifier

Advanced DSP with Intrinsic Correction™

Directivity Matched Transition (DMT)

Compact power.
Embodying the high performance, superior quality and lasting reliability you expect from QSC, the CP12 offers unparalleled value in an ultra-compact form factor. Designed for versatility, CP Series provides the perfect audio solution for a broad range of both portable and installed applications. Incredibly compact and lightweight, the CP12 is easy to lift, carry and transport without sacrificing professional PA performance.

Key Features

Core Performance​​​​​​

  • 1000-watt peak power
  • 12-inch woofer
  • 1.4-inch HF compression driver
  • 126 dB @ 1 m (peak SPL)

Advanced Audio Technology

  • Intrinsic Correction™
  • DMT™ (Directivity Matched Transition)
  • One-touch contours: Default, Dance, Floor Monitor, Speech

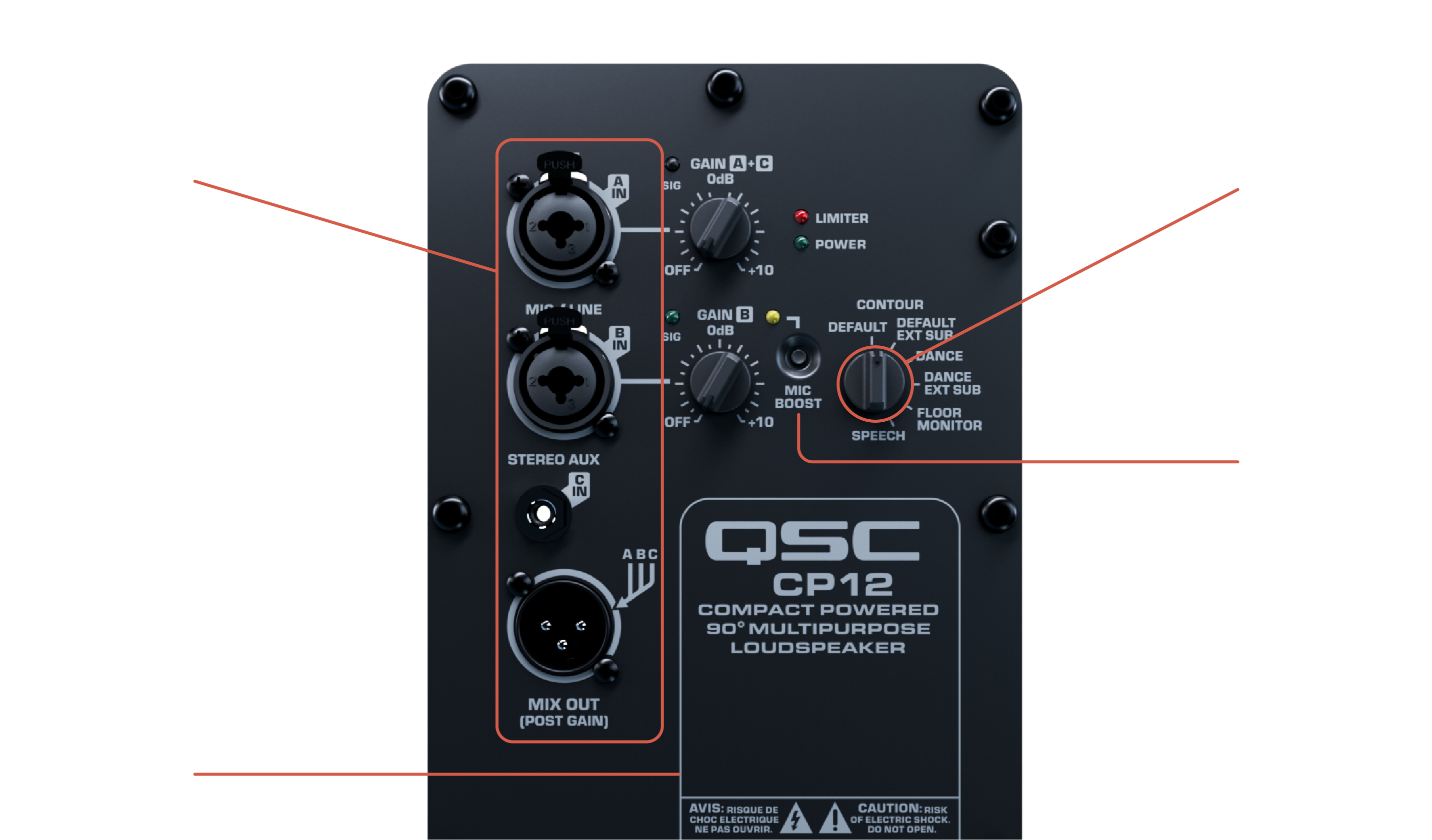

Versatile Connectivity

  • 3-Channel built-in mixer
  • Mix output: an XLR male connector to easily link multiple speakers or send the mixed signal to another system

Design & Portability

  • Ultra-compact & lightweight: weighs only 30 lbs (13.7 kg), making it exceptionally easy to transport and deploy
  • Multi-purpose enclosure: the rugged polypropylene cabinet features a 55° wedge angle

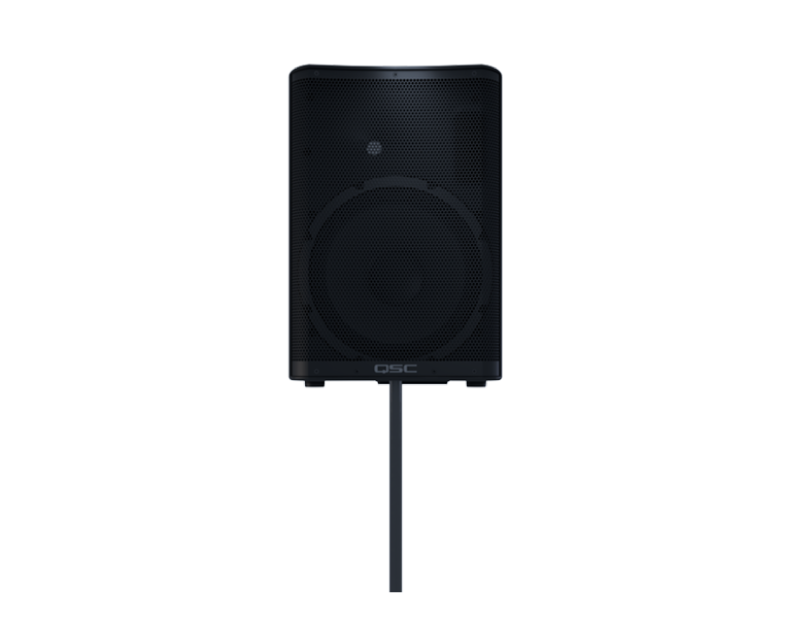

  • Mounting options: includes a 35 mm pole socket for stand mounting and M10 threaded inserts for permanent installations

Reliability

  • Professional build: features an 18-gauge powder-coated steel grille and a stylish yet durable exterior
  • 6-Year Warranty: backed by QSC’s warranty with product registration within 30 days of purchase.

Easy to Use

CP Series Training Videos

CP12 Accessories

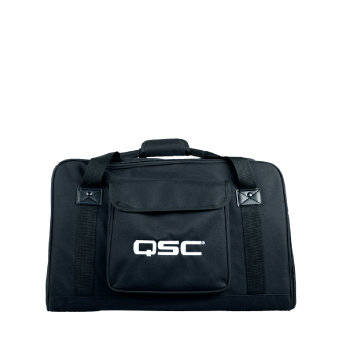

CP12 Tote
Soft, padded, weather-resistant tote made of heavy-duty Nylon/Cordura®.

learn more

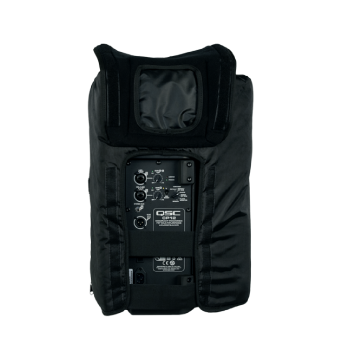

CP12 Outdoor Cover
Nylon fabric and mesh cover for temporary outdoor use in adverse weather.

learn more

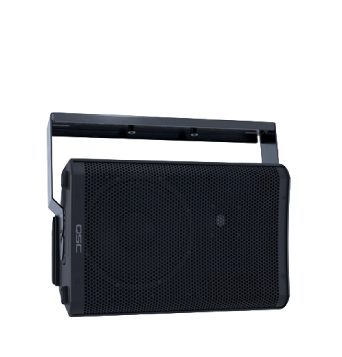

CP12 Yoke
For mounting the CP8 vertically or horizontally to walls, beams, or other structures.

learn more

Resources

Model CP12
Configuration Two-way active loudspeaker
LF Transducer: 305 mm (12 in), cone
HF Transducer: 35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB) 49 - 20 kHz
Frequency Range (-10 dB) 47 - 20 kHz
Nominal Coverage Angle: 75° Axisymetric
Maximum Rated SPL1: 126 dB
Amplifier: Class D
Peak: 800 W (LF), 200 W (HF)
Controls: Power
2 × Gain
Mic Boost Push Switch
6-way Contour Selection Switch
Indicators: Power LED
2 × Input Signal LED
Input B MIC selected LED
Limiter active LED

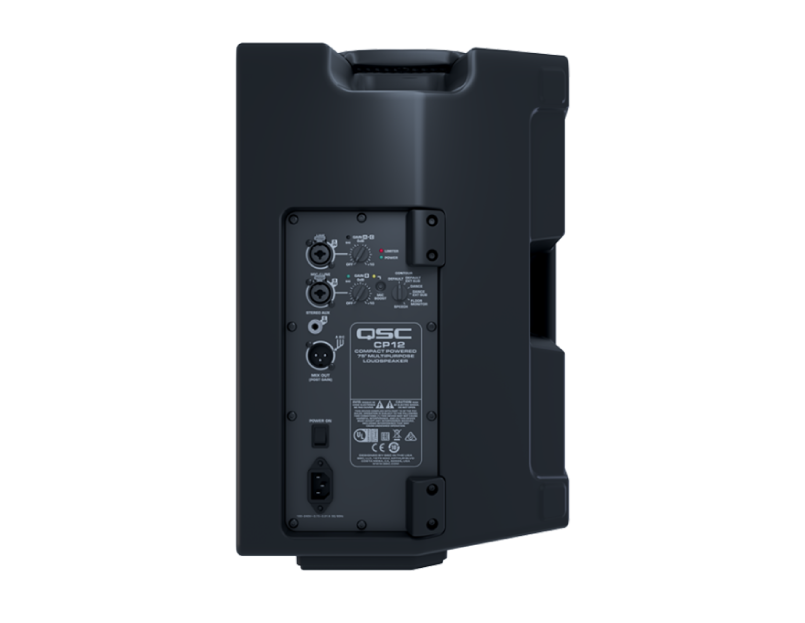

Connectors: 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input)
1 × 3.5 mm TRS (Stereo Input)
1 × XLR/M (Mix Output)
1 × IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (1/8th Power): 100 VAC, 0.75A - 240VAC 0.31A
Enclosure Material: Polypropylene
Attachment Points: M8 threaded insert
Color: Black (RAL 9011)
Grille: 18 Gauge powder-coated steel

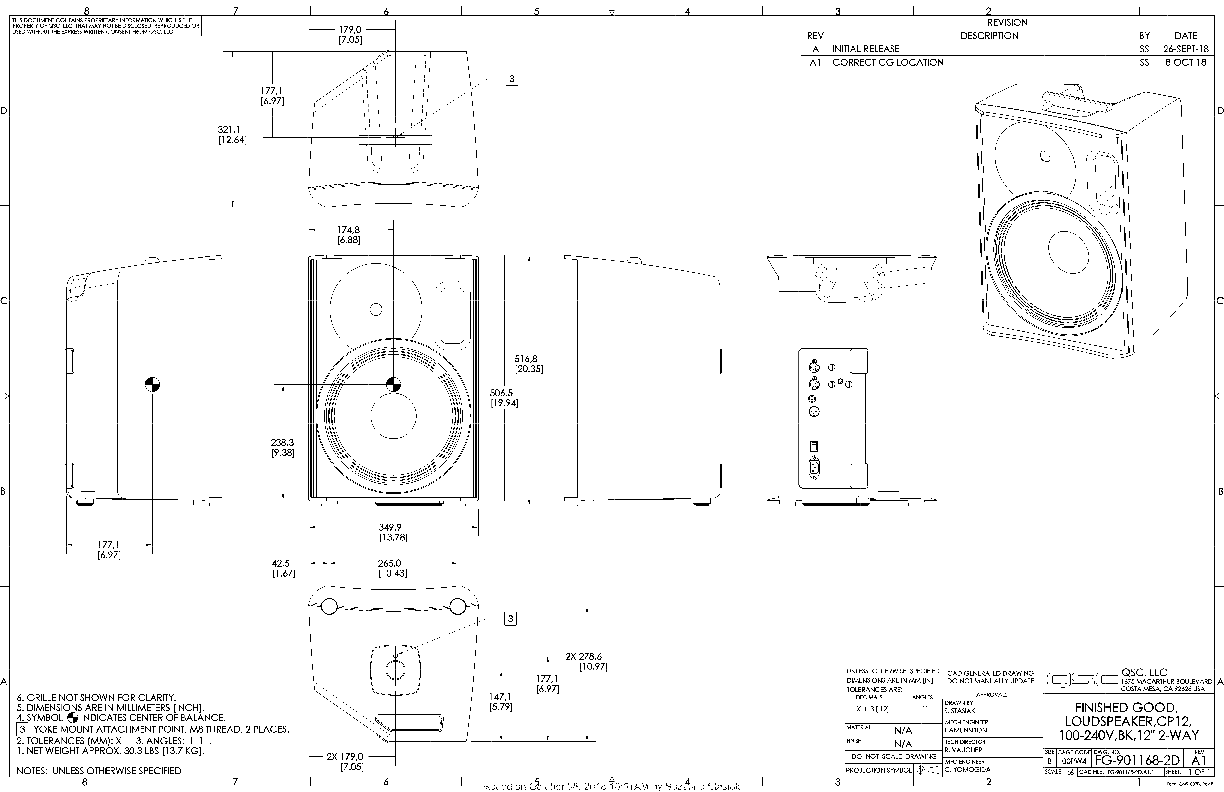

Speaker Dimensions (H×W×D): 516 × 350 × 323 mm
20.3 × 13.8 × 12.7 in
Carton Dimensions (H×W×D): 430 × 430 × 604 mm
17 × 17 × 23.8 in
Net Weight: 13.7 kg / 30.3 lb
Shipping Weight: 16.5 kg / 36.4 lb
Regulatory: EMC, UL, CB
Optional Accessories: CP12 Tote, CP12 Outdoor Cover, CP12 Yoke


1Peak SPL is measured on-axis at 1 m, with dynamic pink noise

All specifications are subject to change without notice.
