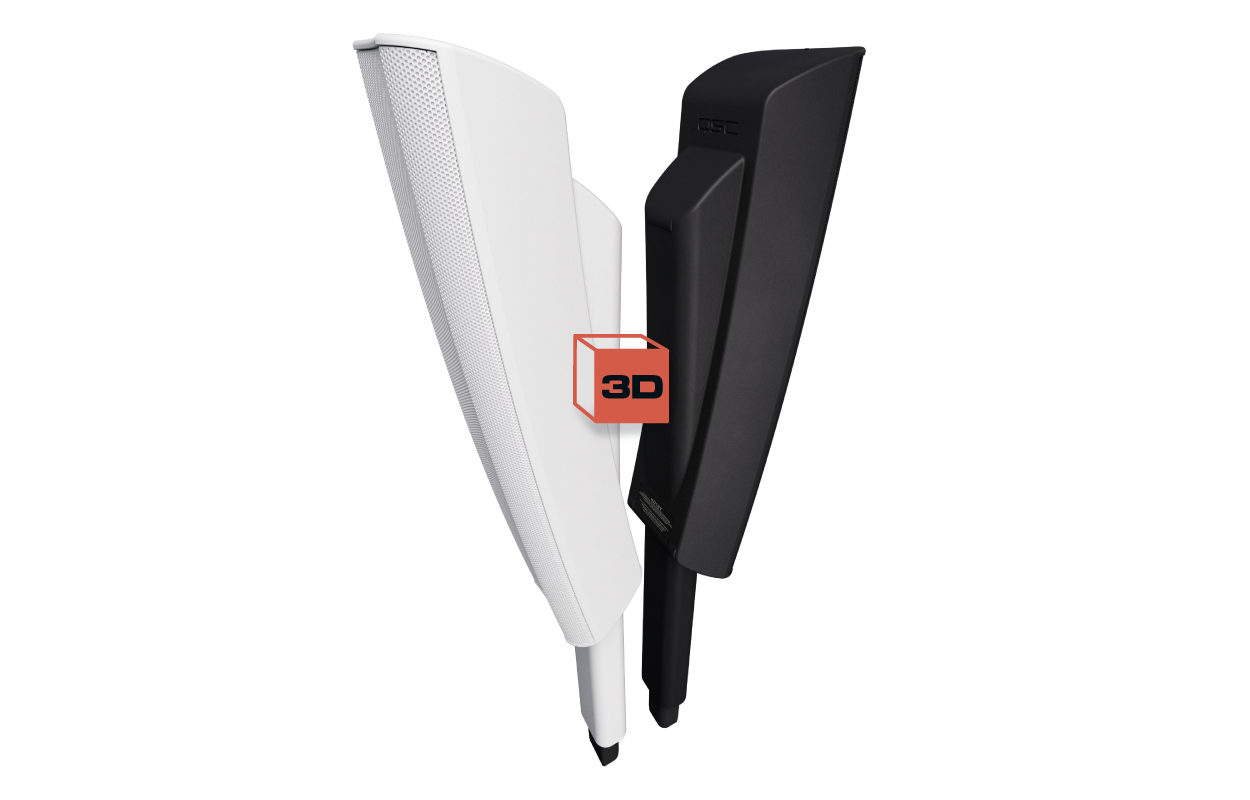

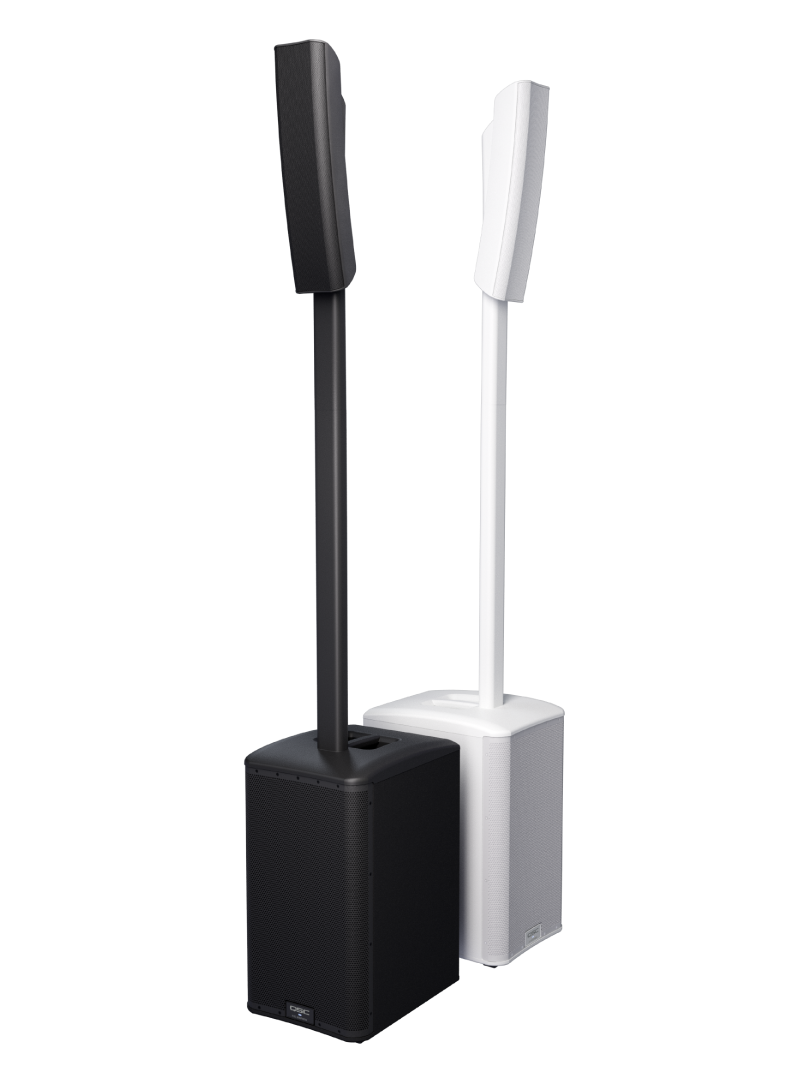

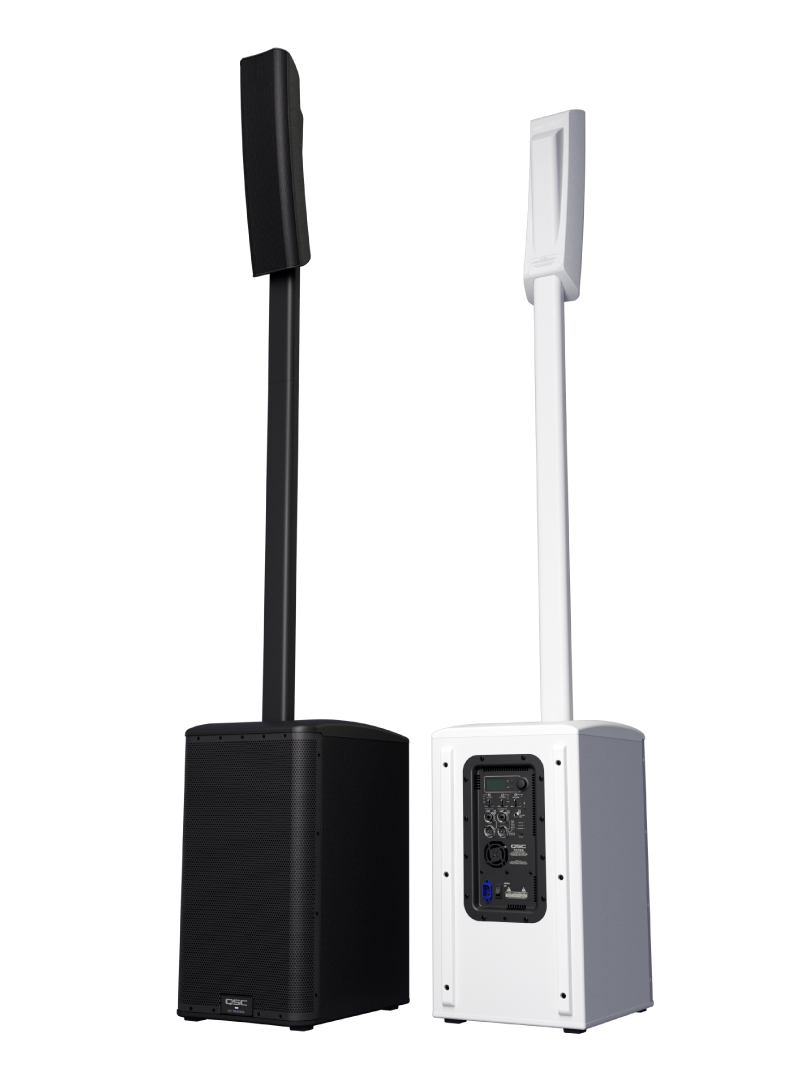

KC12 “K Column”
Building on the legacy of the K Family, the KC12 “K Column” is a 3-way, 3000-watt loudspeaker system that combines a column aesthetic with the acoustic performance of traditional “box” systems. Easy to transport, deploy and use, it’s ideal for DJs and mobile entertainers, musicians and bands, and event production professionals. Backed by a
6-year warranty.*
*With product registration within 30 days of purchase.

Unmatched Sound Quality

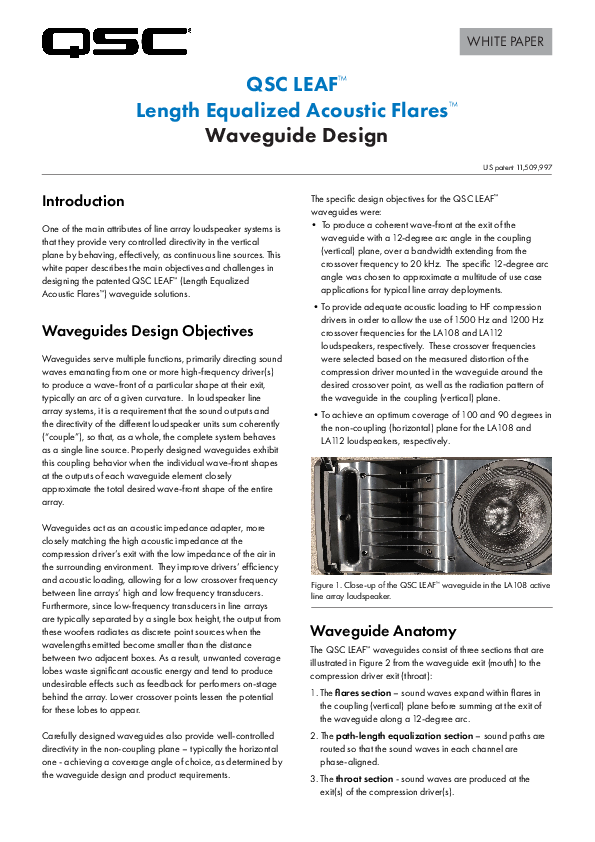

Unlike traditional column loudspeakers which use a series of small distortion-prone drivers incapable of mid- and high-frequency bandwidth, the KC12’s dual 4-inch drivers and compression driver with the QSC LEAF™ (Length-Equalized Acoustic Flare) Waveguide deliver an astounding 145° horizontal coverage area and 35° audience-directed vertical average. The result is clean and natural sound at all output levels.

Core Performance

  • 3000-watt class-D power
  • One 12-inch long-excursion subwoofer, two 4-inch midrange drivers and a 1-inch high-frequency compression driver
  • 132 dB @ 1 m (peak SPL)
  • Utilizing the innovative QSC LEAF waveguide for a wide 145° horizontal by 35° vertical coverage for uniform sound across large audiences

Advanced Control and DSP

  • Multi-Function Digital Display: allows for easy navigation of system parameters including global parametric EQ, delay (up to 200 ms) and reverb
  • Bluetooth® with TWS: supports wireless audio streaming with True Wireless Stereo (TWS)
  • Presets and Scenes: provides a library of factory presets for specific applications (DJs, Live Music, Speech) and allows users to save and recall custom Scenes

Connectivity & Versatility

  • 3-channel internal mixer
  • Charge and Sync: features a USB-C port for charging mobile devices or performing firmware updates

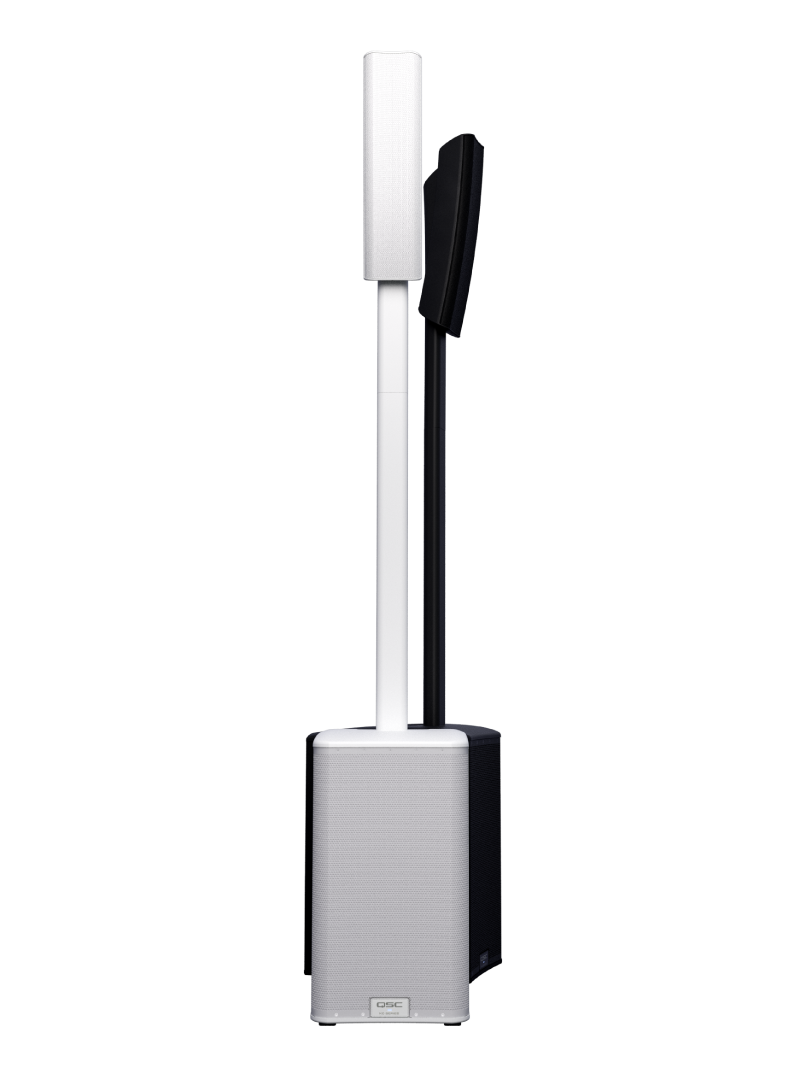

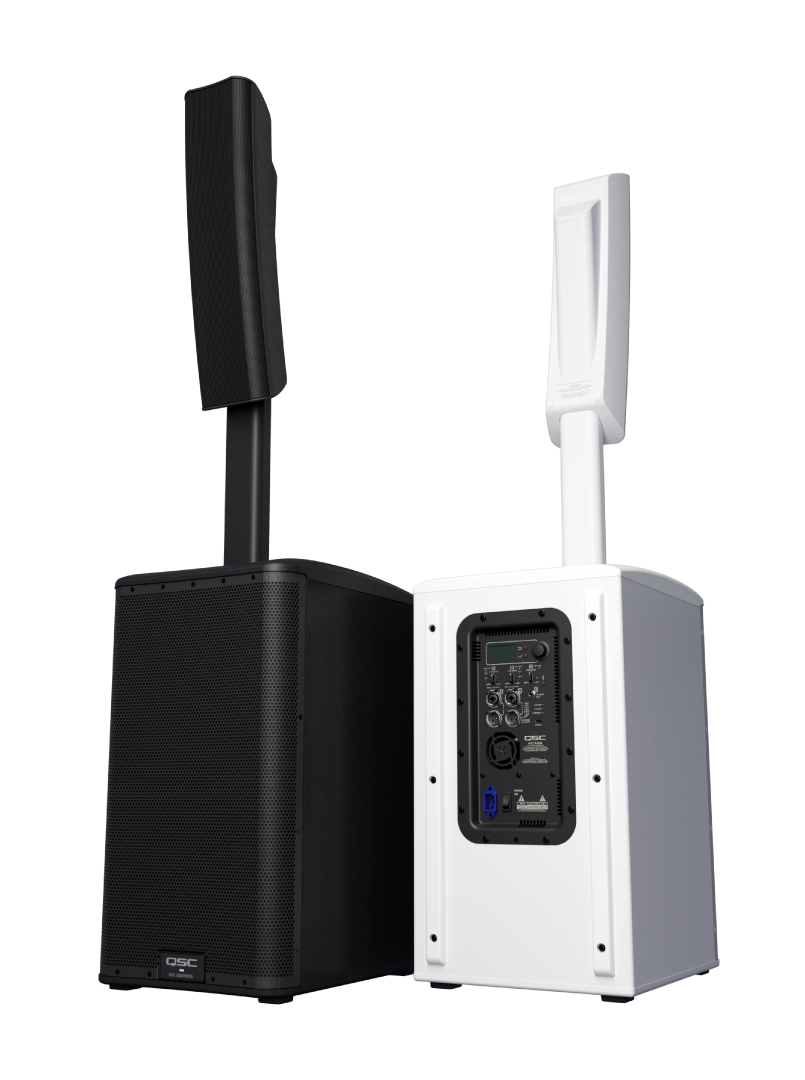

  • Flexible Deployment: Can be used in Tall (with the column pole) or Short (top unit directly on the sub) deployment for floor, stage or riser use

Build & Protection

  • Premium Materials: constructed with impact-resistant ABS for the top and 12 mm birch plywood for the subwoofer
  • Portable Design: at 60.3 lbs (27.3 kg) the KC12 includes a dedicated transport tote for the column and pole sections
  • Industry-Leading Support: backed by a 6-year extended warranty upon product registration

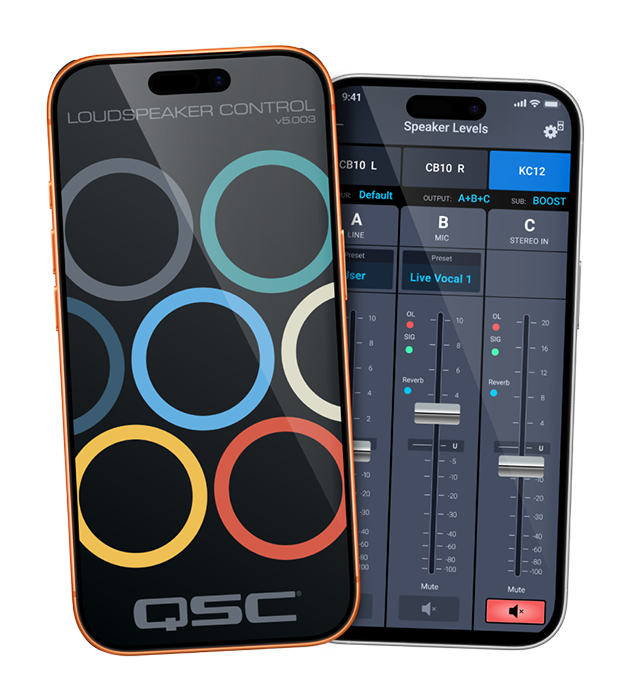

Loudspeaker Control app



Control your CB10 and all QSC Bluetooth-equipped loudspeakers right from your phone. The Loudspeaker Control app gives you instant access to essential audio controls and advanced capabilities.

Download on the App Store
Get it on Google Play

KC12 Training Videos

Accessories

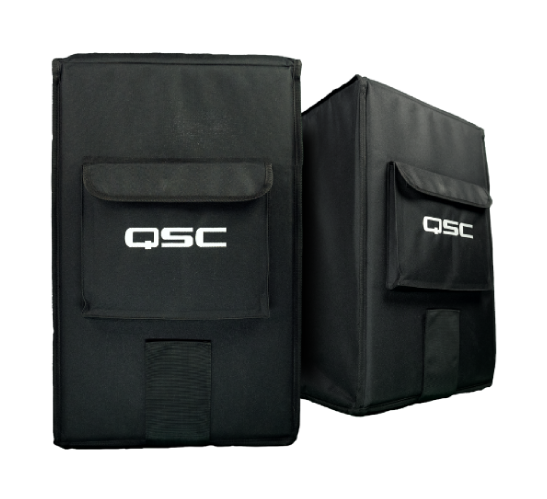

KC12 Sub Transport Cover
Soft transport cover made with heavy-duty Nylon/Cordura® material for the KC12S (Active 12-inch Column System Subwoofer).

learn more

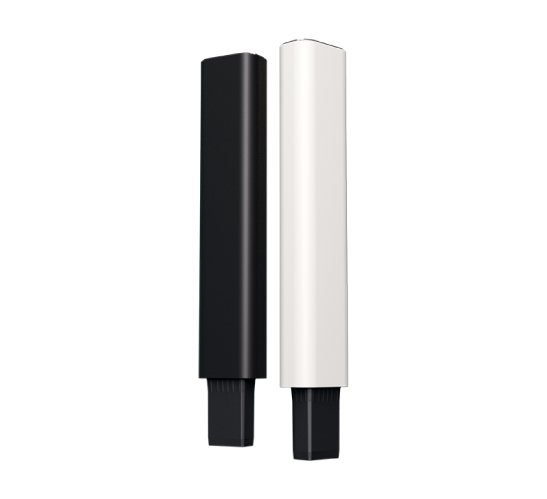

KC12 Extension Pole
14-inch extension pole for the KC12 Column Loudspeaker System.

learn more

Resources

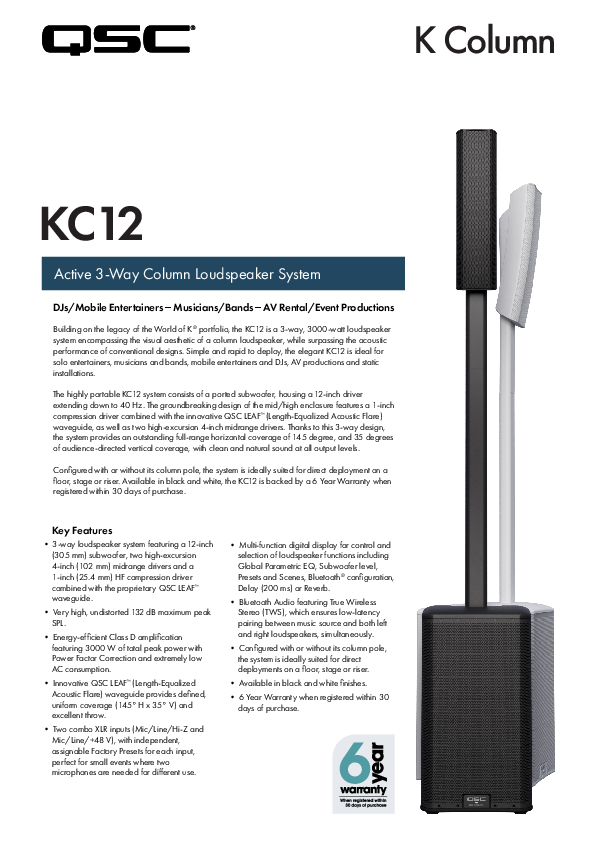

Model KC12
Configuration Active 3-Way Column Loudspeaker System
LF Transducer: 305 mm (12-inch), cone
MF Transducer: 2 x 102 mm (4-inch), cone
HF Transducer: 25.4 mm (1-inch), compression driver
Frequency Response (-6 dB) 45 Hz - 18.5 kHz
Frequency Range (-10 dB) 40 Hz - 20 kHz
Nominal Coverage Angle: 145° H x 35° V
Maximum Rated SPL1 (peak): 132 dB @ 1 m
Amplification (peak): Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)
Cooling: Low noise, variable speed fan

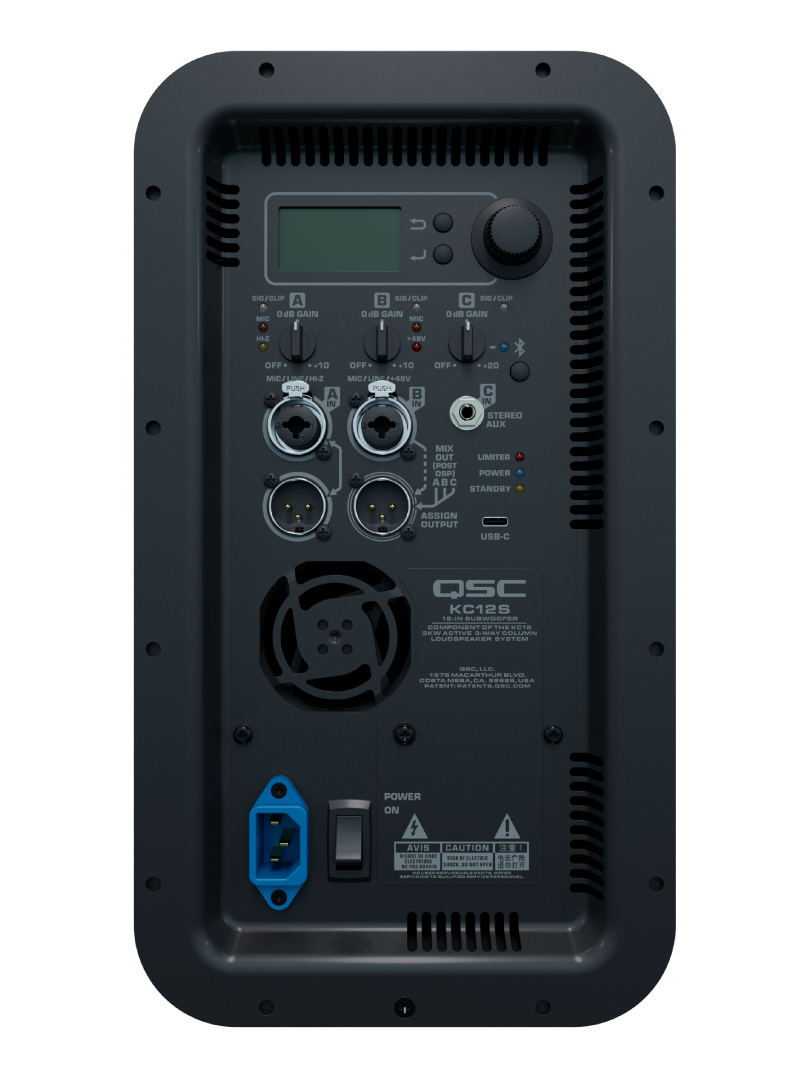

Controls: 1 x Rotary encoder and
2 x Push buttons
3 x Rotary level potentiometers
1 x AC power switch
Indicators: Monochrome LCD Display 45 x 25.4 mm (1.75 x 1 inch)
2 × Power LEDs (blue), Subwoofer front and rear
1 x Standby LED (yellow)
1 x Limiter LED (red)
3 × Input Signal/Clip LEDs (Signal: green / Clipping: red)
Input A: Mic/Line with assignable Hi-Z selected LED
Input B: Mic/Line with assignable +48 V selected LED
Input C: Bluetooth selected LED
Connectors: 2 × locking XLR/F ¼ inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V)
2 × XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP)
1 × 3.5 mm TRS (Stereo Input)
1 x USB-C (Output: 5V/3A)
1 × locking IEC power connector
AC Power Input: Universal power supply, 100-240VAC, 50/60 Hz
AC Power Consumption2: 100-240VAC ~ 3.7-1.8 A
System Components: KC12T 145° Dual 4-inch Column System Loudspeaker
KC-SP32 32-inch Column System Pole
KC12S 3kW Active12-inch Column System Subwoofer
Enclosure Materials: Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum
Color: Black (RAL 9011), White (RAL 9010)
Grille: Powder-coated steel with internal cloth lining (KC12T: 21 Gauge / KC12S: 18 Gauge)

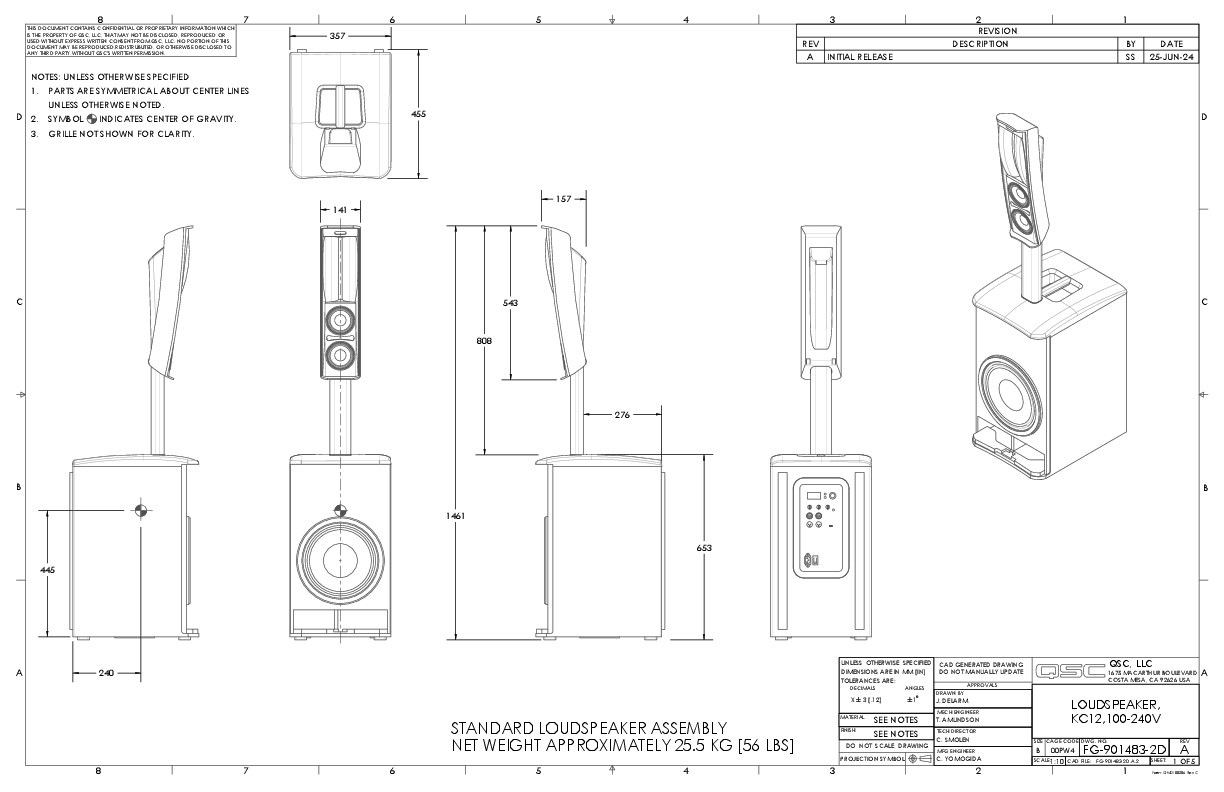

System Height: Tall Deployment: 2270 mm / 89.4 in (with KC-SP32)
Short Deployment: 1463 mm / 57.6 in (without KC-SP32)
Dimensions (H×W×D): KC12T: 890 × 141 × 158 mm / 35 × 5.6 × 6.2 in
KC-SP32: 881 × 74 × 46 mm / 34.7 × 3 × 1.8 in
KC12S: 655 × 357 × 455 mm / 25.8 × 14 × 18 in
Net Weight: Tall Deployment: 27.3 kg / 60.3 lb (with KC-SP32)
KC12T: 4.0 kg / 8.9 lb
KC-SP32: 1.3 kg / 2.9 lb
KC12S: 22.0 kg / 48.5 lb
Supplied Accessory: KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32
Optional Accessory: KC12 CVR: Cover for the KC12S Subwoofer
Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
California Prop 65 ⓘ: Warning Information
Optional Accessories: CB10-CVR: Weatherized Cover for the CB10 Loudspeaker System
CB10-BATTERY: Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module


1Measured at 1 meter, on-axis, using IEC268 Pink Noise.
21/8 power is representative of current draw with typical music program material with occasional clipping.
